Angular 11 in Depth

Everything you need to know about Angular 11

Sebastien Dubois

Sebastien Dubois

— 19 min read
Angular 11 in Depth

Update: Angular 12 is out. Check out my article about it: https://javascript.plainenglish.io/angular-12-in-depth-7741e759c72

Angular 11 has just been released. Time to discover what's new!

In this article, I’ll go over (almost) everything noteworthy in this brand-new release. I’ll also highlight what’s changed around Angular, just like I did with my Angular 10 in depth article.

If you want a helicopter view of what’s new, then check out the official Angular blog. Here, I’ll try to dig much deeper into the release notes.

As a reminder, the Angular team tries to release two major versions per year; so Angular 12 should arrive early next year.

If you’re missed the previous article about Angular 10, then go check it out too.

Operation “byelog” progress

As I’ve mentioned a while ago in my analysis of the Angular roadmap, one of the goals of the Angular team in recent months has been to reduce the size of the Angular backlog.

With Angular 11, the Angular team has triaged, reviewed their whole backlog (which is quite impressive), and resolved tons of issues.

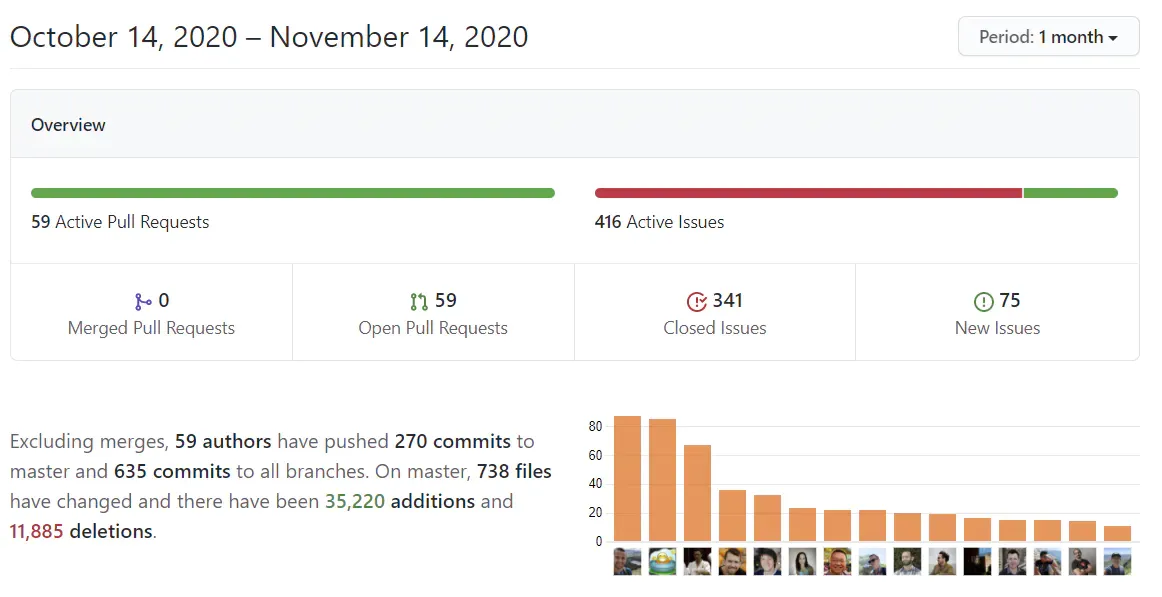

Just over the last month, 341 issues have been closed:

As I’m writing this, there are now ~2.5K open issues, 19K closed ones, as well as ~500 open PRs.

As mentioned in the release blog post, going forward, the Angular team commits to triage all new issues within two weeks, which is a huge improvement over what we’ve seen in the past with some long-standing issues that didn’t get much attention.

With Angular 11, major issues such as the ones below have been resolved:

Faster builds

Angular 11 brings speed improvements (which we’re always happy to hear about).

NGCC, which was particularly painful for CI, is now much faster (2–4x!).

In addition, the upgrade to TypeScript 4.0 also brings faster compilation times.

TypeScript 4.0

As stated in the previous section, Angular 11 supports TypeScript 4.0. Along with that, support for TypeScript 3.9 has been dropped, which is great. We all need to stay up to date with the awesomeness of TypeScript! ;-)

If you haven’t read about TS 4.0 yet, then check out my article about it.

Automatic font inlining

Angular 11 introduces automatic inlining of fonts. The Angular CLI will now download and inline the fonts used/linked by the application.

This new feature will be enabled by default, going forward, which is pretty cool; especially for commercial Websites/applications, which benefit the most from having better “Web vitals” ;-)

Of course, it’s the kind of improvement that doesn’t change all that much for applications that already integrate well-configured service workers, but it’s still great to have out of the box.

You can find more details about this new feature over here.

Improved reporting and logging

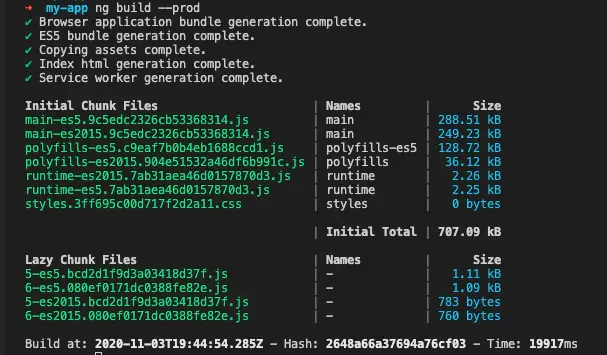

Angular 11 brings cool improvements to our development consoles. The CLI output now includes much more user-friendly/readable information as shown in the official blog post:

NG CLI support Hot Module Replacement (HMR)

With Angular 11, HMR support has been added to the Angular CLI, making it much easier to enable HMR when starting an Angular application using ng serve --hmr.

Once started, the console clearly indicates that HMR is active:

NOTICE: Hot Module Replacement(HMR) is enabled for the dev server

HMR is a feature that has been supported by Webpack for a long time; you can find more information about it here: https://webpack.js.org/guides/hot-module-replacement/

What’s cool with HMR is that once enabled, changes to components, templates, and styles are immediately applied to the running application, without requiring a full page refresh. For instance, if you’ve filled in a form, make changes to some styles, then those get applied to the page, and your page/form stays in its current state. The same is true for the state of the controllers, scroll position, and other things.

HMR is certainly not perfect (there are some gotchas), but it makes for a smoother developer experience.

Experimental support for Webpack 5

While we’re onto Webpack… As some of you might know, version 5 of Webpack has been released a few weeks back and has brought many changes, including major breaking ones.

On the positive side, Webpack 5 brings:

  • Improved build performance with persistent caching
  • Improved long term caching with better algorithms/defaults
  • Improved bundle sizes with better tree shaking/better code generation
  • Improved compatibility with the Web platform

On the “negative” side, Webpack 5 has also removed the automatic Node.js polyfills that has been there for so long.

As explained in the Webpack 5 release notes, in the early days, Webpack’s aim was to allow running most Node.js modules in the browser. But, since then, the ecosystem has evolved a lot, and many modules are now written specifically for the Web. Because of that, the Webpack maintainers have decided to remove the automatic polyfills, which added (often) unnecessary bloat to our bundles.

Unfortunately, this means that modules that we took for granted will now cease to work on the front-end, unless they are updated or unless we chose alternatives that do work in Web browsers.

Since this is still early on, I suppose that the Angular team wants to limit the impact for us, which is why this support is still experimental at this point and why the Angular team does not recommend enabling this for production just yet.

If you want to give it a try, then you simply need to add the following to your package.json file:

"resolutions": {
  "webpack": "5.4.0"
}

Note that this only works with yarn at the moment.

Deprecation of TSLint

As you probably know by now, TSLint is on the way out. It has been deprecated months ago by Palantir and the recommendation is to switch to ESLint.

During the last few months, some members of the Angular community grew a bit worried that Angular didn’t take care of the migration, but the waiting is over.

With Angular 11, TSLint and Codelyzer are officially deprecated, meaning that they’ll be removed in future versions.

So, it is time for all of us to migrate to ESLint (or at least prepare for it). Fortunately for us, James Henry and a few others have worked on a migration path for the rest of us.

For more details, check out the following links:

In addition, fortunately for us, alternatives for popular TSLint rule sets are now being ported to ESLint as well:

And this means that the transition should be pretty smooth for most of us thanks to the awesome work of the OSS community!

IE9/IE10/IE Mobile are out

I’ve told you many times, but Internet Explorer is dead. And it’s not useful to keep the dead around for too long. Otherwise, you end up with zombie apocalypse; trust me ;-)

Angular 11 has finally removed support for IE9/IE10 and IE Mobile. For obscure corporate reasons, support for IE 11 is still supported, but please don’t count on that staying true for long.

Now that we have Edge chromium, there’s no reason to let IE linger any longer in corporate environments.

And more…

Stricter types built-in pipes

The typings for the DatePipe and number pipes (i.e., CurrencyPipe, DecimalPipe, PercentPipe), as well as other common ones (e.g., AsyncPipe, I18nPluralPipe) have been improved and are stricter. Previously, the types didn’t state explicitly which types are accepted.

This change might cause compilation errors (so can be considered a breaking change), but it actually uncovers invalid usages.

The less I see the any type being used, the better I feel.

ISO week-numbering year formats support

The formatDate function now supports ISO 8601 week-numbering year formats (i.e., 'r', 'rr', 'rrrr').

Details here: https://github.com/angular/angular/pull/38828/files

Trusted Types support progress

As I’ve previously explained in my analysis of the Angular Roadmap, the Angular team is busy adding support for the “new” Trusted Types API.

In this release, there are a number of improvements related to Trusted Types. First of all, the development mode is now compatible, meaning that there’s a special Trusted Types policy available/enabled during development. That policy allows arbitrary/unsafe conversions to Trusted Types. Take a look at the PR if you’re interested in “dark magic” ;-)

Secondly, this release includes an internal module that provides a Trusted Types policy for internal use by Angular: https://github.com/angular/angular/pull/39207

There’s not much in “userland” so far, but it’s understandable is this is a major change that will probably take some time/effort, but we’ll probably hear soon about this.

Ultimately it should help us build safer applications.

Parse and recover on incomplete opening HTML tags

Previously, the Angular compiler failed to correctly pinpoint the source of an error like this:

div<span>123</span>

As of Angular 11, the compiler will recover from such errors and interpret the above as follows:

<div></div><span>123</span>

While it will recover from such errors, the compiler will also emit an error clearly indicating that there’s something wrong with the opening tag. As such, this will give us clearer errors, which is cool!

Details over here: https://github.com/angular/angular/pull/38681

New automated migrations & schematics

Angular 11 includes some new automatic migrations, which are cool since they make it easier to move away from deprecated features/functions:

  • One that finds all imports/calls to the deprecated async function from @angular/core/testing and replaces them with waitForAsync
  • One that replaces usages of ViewEncapsulation.Native (which has been removed!) with ViewEncapsulation.ShadowDom
  • One that appends non-null assertions (i.e., ! ) to existing unsafe accesses to the Abstractcontrol#parent property: https://github.com/angular/angular/pull/39009
  • One that updates RouterModule configurations to use the defaultrelativeLinkResolution value to use an explicit value (i.e., the old default: legacy). Note that the new default as of Angular is: corrected
  • One that update calls to navigateByUrl and createUrlTree with invalid parameters and fixes those calls. This will get rid of (previously accepted) unsupported properties, which is good, right?!

There’s also a new initialNavigation schematic, allowing us to update our code to the newinitialNavigation options for the RouterModule. This schematic replaces the deprecated/removed true, false, legacy_disabled and legacy_enabled options with the newer enabledBlocking and enabledNonBlocking options. Reference: https://github.com/angular/angular/pull/36926

Service worker improvements

NG SW now allows us to configure a navigationRequestStrategy, which we can use to force the service worker to always create a network request for navigation requests.

As mentioned in the PR, this enables server redirects while retaining the offline behavior.

In addition, NG SW now has a new state: UnrecoverableStateError, which can be raised when there’s a missing asset in the cache and on the server. When that condition is true, then the client is broken and it gets notified of the issue. This means that we can now react to that specific problem.

References:

Lazy loading support for named outlets

As mentioned by Santosh, we can now use lazy loading with named outlets: https://indepth.dev/angular-11-towards-type-safety#support-lazy-loading-with-named-outlets

Angular CLI generator for resolvers

The Angular CLI can now generate resolve guards:

ng g r/resolver <name>

I didn’t see this in the release notes, but it’s also been mentioned by Santosh (thanks for letting us know!).

Breaking changes

As usual, major releases include breaking changes. And there are quite a few with Angular 11.

As the official release notes are pretty clear, I’m just copy/pasting those here:

  • platform-server: If you use useAbsoluteUrl to setup platform-server, you now need to also specify baseUrl. We are intentionally making this a breaking change in a minor release, because if useAbsoluteUrl is set to true then the behavior of the application could be unpredictable, resulting in issues that are hard to discover but could be affecting production environments.
  • compiler: TypeScript 3.9 is no longer supported, please upgrade to TypeScript 4.0.
  • router: * The initialNavigation property for the options in RouterModule.forRoot no longer supports legacy_disabled, legacy_enabled, true, or false as valid values. legacy_enabled (the old default) is instead enabledNonBlocking
  • enabled is deprecated as a valid value for the RouterModule.forRoot initialNavigation option. enabledBlocking has been introduced to replace it
  • router: preserveQueryParams has been removed, use queryParamsHandling=”preserve” instead
  • router: If you were accessing the RouterLink values of queryParams, fragment or queryParamsHandling you might need to relax the typing to also accept undefined and null. (#39151)
  • core: * ViewEncapsulation.Native has been removed. Use ViewEncapsulation.ShadowDom instead. Existing usages will be updated automatically by ng update.
  • compiler-cli: Expressions within ICUs are now type-checked again, fixing a regression in Ivy. This may cause compilation failures if errors are found in expressions that appear within an ICU. Please correct these expressions to resolve the type-check errors.
  • forms: Directives in the @angular/forms package used to have any[] as a type of validators and asyncValidators arguments in constructors. Now these arguments are properly typed, so if your code relies on directive constructor types it may require some updates to improve type safety.
  • forms: Type of AbstractFormControl.parent now includes null. null is now included in the types of .parent. If you don't already have a check for this case, the TypeScript compiler might complain. A v11 migration exists which adds the non-null assertion operator where necessary. In an unlikely case your code was testing the parent against undefined with strict equality, you'll need to change this to === null instead, since the parent is now explicitly initialized with null instead of being left undefined.
  • packaging: In v10, IE 9, 10, and IE mobile support was deprecated. In v11, Angular framework removes IE 9, 10, and IE mobile support completely. Supporting outdated browsers like these increases bundle size, code complexity, and test load, and also requires time and effort that could be spent on improvements to the framework. For example, fixing issues can be more difficult, as a straightforward fix for modern browsers could break old ones that have quirks due to not receiving updates from vendors.
  • platform-webworker: @angular/platform-webworker and @angular/platform-webworker-dynamic have been removed as they were deprecated in v8
  • common: The slice pipe now returns null for the undefined input value, which is consistent with the behavior of most pipes. If you rely on undefined being the result in that case, you now need to check for it explicitly.
  • common: The typing of the keyvalue pipe has been fixed to report that for input objects that have number keys, the result will contain the string representation of the keys. This was already the case and the code has simply been updated to reflect this. Please update the consumers of the pipe output if they were relying on the incorrect types. Note that this does not affect use cases where the input values are Maps, so if you need to preserve numbers, this is an effective way.
  • common: The signatures of the number pipes now explicitly state which types are accepted. This should only cause issues in corner cases, as any other values would result in runtime exceptions.
  • common: The signature of the date pipe now explicitly states which types are accepted. This should only cause issues in corner cases, as any other values would result in runtime exceptions.
  • common: The async pipe no longer claims to return undefined for an input that was typed as undefined. Note that the code actually returned null on undefined inputs. In the unlikely case you were relying on this, please fix the typing of the consumers of the pipe output.
  • common: The case conversion pipes no longer let falsy values through. They now map both null and undefined to null and raise an exception on invalid input (0, false, NaN) just like most "common pipes". If your code required falsy values to pass through, you need to handle them explicitly.
  • router: While the new parameter types allow a variable of type NavigationExtras to be passed in, they will not allow object literals, as they may only specify known properties. They will also not accept types that do not have properties in common with the ones in the Pick. To fix this error, only specify properties from the NavigationExtras which are actually used in the respective function calls or use a type assertion on the object or variable: as NavigationExtras.
  • router: This commit changes the default value of relativeLinkResolution from 'legacy' to 'default'. If your application previously used the default by not specifying a value in the ExtraOptions and uses relative links when navigating from children of empty path routes, you will need to update your RouterModule to specifically specify 'legacy' for relativeLinkResolution. See https://angular.io/api/router/ExtraOptions#relativeLinkResolution for more details.
  • core: If you call TestBed.overrideProvider after TestBed initialization, provider overrides are not applied. This behavior is consistent with other override methods (such as TestBed.overrideDirective, etc) but they throw an error to indicate that, when the check was missing in the TestBed.overrideProvider function. Now calling TestBed.overrideProvider after TestBed initialization also triggers an error, thus there is a chance that some tests (where TestBed.overrideProvider is called after TestBed initialization) will start to fail and require updates to move TestBed.overrideProvider calls before TestBed initialization is completed.
  • router: This change corrects the argument order when calling RouteReuseStrategy#shouldReuseRoute. Previously, when evaluating child routes, they would be called with the future and current arguments would be swapped. If your RouteReuseStrategy relies specifically on only the future or current snapshot state, you may need to update the shouldReuseRoute implementation’s use of “future” and “current” ActivateRouteSnapshots.
  • common: The locale data API has been marked as returning readonly arrays, rather than mutable arrays, since these arrays are shared across calls to the API. If you were mutating them (e.g. calling sort(), push(), splice(), etc) then your code will not longer compile. If you need to mutate the array, you should now take a copy (e.g. by calling slice()) and mutate the copy.
  • common: When passing a date-time formatted string to the DatePipe in a format that contains fractions of a millisecond, the milliseconds will now always be rounded down rather than to the nearest millisecond. Most applications will not be affected by this change. If this is not the desired behaviour then consider pre-processing the string to round the millisecond part before passing it to the DatePipe.
  • core: CollectionChangeRecord has been removed, use IterableChangeRecord instead
  • forms: Previously if FormControl, FormGroup and FormArray class instances had async validators defined at initialization time, the status change event was not emitted once async validator completed. After this change the status event is emitted into the statusChanges observable. If your code relies on the old behavior, you can filter/ignore this additional status change event.

Phew, quite a lot, but one thing that strikes me is the beginning of type safety improvements in @angular/forms, which is simply awesome!

Roadmap update

The Angular team has updated the official roadmap, but I haven’t had the chance to look at the details of the changes.

In the blog post, the Angular team mentions that Lukas Ruebbelke has participated in the effort, which is great, as he was also the one who shouted the loudest the discontent of many in the Angular community.

I’ll probably review the changes in the coming weeks and update my analysis post about the roadmap.

Preview of the Language Service improvements

The Angular Language Service still uses ViewEngine which is bound to go away soonish to be replaced by an Ivy version.

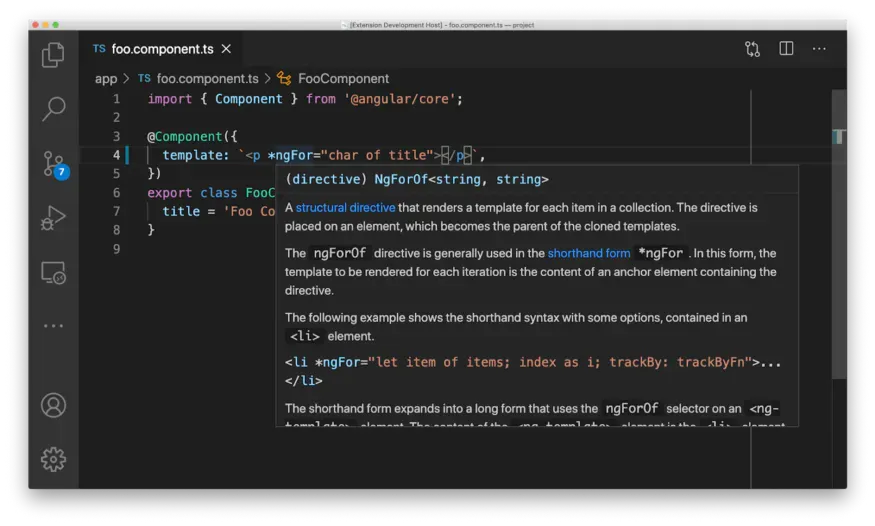

In the blog post, the Angular team has included a sneak peek of the Ivy-based language service. As you can guess, once finalized, it will have a big impact on developer experience and type safety.

Once based on Ivy, the language service will (at least) be able to infer generic types in Angular component templates, which will be a huge improvement.

Hopefully, this should be included in the next major version of Angular!

Angular CDK improvements

Version 11 of the Angular CDK, has been released.

Component Test Harnesses

The Component Test Harness API, part of the Angular CDK was released with Angular 9. That API allows us to write more readable & more maintainable Angular component tests.

First of all, Angular Material now includes test harnesses for all of its components, which makes it a breeze for us to test components that make use of Angular Material components.

Along with that, the API itself has been improved quite a bit.

We can now use the parallel function to easily parallelize asynchronous actions against components under test. That function works similarly to Promise.all. This is useful when you want to perform multiple actions simultaneously rather than sequentially. Note that this function also takes care of change detection and only triggers it just about enough ;-)

We can use manualChangeDetection to control change detection more precisely in our tests. This should help verify more complicated scenarios. As stated in the official doc, by default, test harnesses will run Angular’s change detection before reading the state of a DOM element and after interacting with one. Most of the time, that’s enough, but sometimes it isn’t (e.g. if you want to check the state of a component while an asynchronous operation is pending). Here’s an example from the official doc:

it('checks state while async action is in progress', async () => {
const buttonHarness = loader.getHarness(MyButtonHarness);
await manualChangeDetection(async () => {
await buttonHarness.click();
fixture.detectChanges();
// Check expectations while async click operation is in progress.
expect(isProgressSpinnerVisible()).toBe(true);
await fixture.whenStable();
// Check expectations after async click operation complete.
expect(isProgressSpinnerVisible()).toBe(false);
});
});

view rawmanualCD.ts hosted with ❤ by GitHub

You can learn more about those new functions over here: https://github.com/angular/components/pull/20464

In addition:

  • Related to scrolling, the CdkVirtualForOf now supports Sets. Now it is in line with NgForOf in that it supports both arrays and iterables in general
  • Related to overlays, the connected-overlay directive now has disableClose input, which can be used to configure whether the overlay can be closed by user interaction or not (clicks on the backdrop or escape keypress)
  • The CDK table now supports a fixed layout, which can be enabled through the aptly called fixedLayout input. Enabling this option enforces consistent column widths and optimize rendering sticky styles for native tables (and is ignored for flex tables). You can read more about it here: https://github.com/angular/components/pull/20258
  • The CDK table now has an API that we can use to programmatically configure the “no data” row: this.table.setNoDataRow(...)

Another cool new feature is the introduction of new type coercion utility: coerceStringArray, which can be used to improve code quality; type coercion utilities of the CDK are definitely on my recommended list. Here’s an example:

If you’re curious about those utilities, then check this out; there are a few additional ones included in the CDK: https://github.com/angular/components/tree/master/src/cdk/coercion

At the beginning of this section, I’ve mentioned the major testing improvements, but there are a few more:

  • We can now dispatch arbitrary events through TestElement using the dispatchEvent method. This is useful for events that can’t be simulated easily and also for custom DOM event handlers to be triggered. You can find some examples over there
  • We can now right-click within a TestElement (e.g., to open a context menu): rightClick?(relativeX: number, relativeY: number): Promise<void>;
  • We can now get a reference to the native DOM element corresponding to a given TestElement using the getNativeElement(el: TestElement) static method
  • We can select options inside of a native <select> element (by their index) using the selectOptions(...optionIndexes: number[]) method
  • MatButtonHarness now extends ContentContainerComponentHarness, which allows nesting of elements

There are also a number of “experimental” features:

Finally, the release includes a number of bug fixes, which you can see on the detailed release notes: https://github.com/angular/components/blob/master/CHANGELOG.md#cdk

Angular Material improvements

Angular Material also continues to improve. With this release, as I’ve mentioned in the previous section, test harnesses have been added for most components.

In addition, there are a number of new features:

  • The select component now supports a global option to specify overlay panel class(es) (string or string array), through the MatSelectConfig interface’s overlayPanelClass option
  • For tabs, we can configure the dynamicHeight globally via MAT_TABS_CONFIG, as explained here: https://github.com/angular/components/issues/19662
  • For autocomplete, the default options (i.e. MatAutocompleteDefaultOptions) may now include the overlayPanelClass option (string or string array): https://github.com/angular/components/issues/20429
  • The calendar component now has a viewChanged output that we can use to react whenever the view changes between month, year & multi-year
  • The drag-drop component now has a cdkDropListSortPredicate input, that we can use to pass in a predicate function that determines whether an item can be sorted into a particular index of the list: https://github.com/angular/components/pull/20389
  • We can pretty-print the structure of a tree using getTreeStructure in test harnesses: https://github.com/angular/components/pull/20568
  • The stepper component now has (better?) theming support through the color input. This is true for mat-step, mat-vertical-stepper, and mat-horizontal-stepper. Thanks to the new input, we can now customize the color, which defaults to the primary one

There are also a number of “experimental” features and bug fixes for the upcoming MDC-based version of the components.

The specific release notes are here: https://github.com/angular/components/blob/master/CHANGELOG.md#material

Angular Flex Layout

The flex-layout module of Angular has also been updated for Angular 11. Note that the version is in beta (11.0.0-beta.33), just like all of the previous ones; which is kind of funny given that it’s been in beta like forever.. What’s in a name, right? ;-)

In any case, I can assure you that it works pretty fine for production.

This new version brings support for Angular 11, CDK 11 and TypeScript 4, as well as a small bug fix for fractional breakpoints.

Angular Universal

Angular Universal has also been updated, but I didn’t dive into its release notes as it isn’t a module I’m currently using / familiar with.

The specific release notes are here: https://github.com/angular/universal/releases/tag/v11.0.0

Upgrading

As usual, there’s a complete upgrade guide available and ng update will help you out: https://update.angular.io/?l=3&v=10.0-11.0

Conclusion

In this article, I’ve explored the new features of Angular 10, Angular CDK, Angular Material, and other modules of Angular.

As usual, this is a solid release. In particular, I appreciate the type safety improvements for pipes, reactive forms, and what’s coming next with the Ivy-based language service. Hopefully, the next major version should bring us even more improvements in that vein.

TypeScript 4.0 support is also excellent news for all of us and I can’t wait for Nrwl NX to bring us Angular 11 support; which shouldn’t take long ;-)

That's it for today! ✨

Subscribe to the newsletter

Read more
